Mastering Six Electron Pair Geometry | The Octahedral Arrangement Explained
Molecules form when atoms bond, yet their arrangement in space is not arbitrary. The concept that explains their shape is called electron pair geometry. This concept permits chemists to anticipate the three-dimensional (3D) spatial arrangement of atoms within a molecule, depending on the number of the electron pairs surrounding a central atom.
In this blog, we will look at what an electron-pair geometry is, how to characterize the geometries for structures with 5 or 6 electron pairs, how clouds of electrons modify geometry, and we will provide practical illustrations of electron-pair arrangements.
What is electron-pair geometry?
The electron-pair geometry describes the spatial arrangement of all electron regions (both bonding and nonbonding) as three-dimensional around a central atom.
Electron regions are:
Bonding pairs (single, double, or triple bonds which are counted as one region)
Lone pairs (nonbonding electrons)
This concept derives from the Valence Shell Electron Pair Repulsion (VSEPR) theory where electron pairs repel each other and arrange to maximize separation to limit repulsion as much as possible.
Simple Definition:
Electron-pair geometry tells us the fundamental shape defined by both bonding and lone electron pairs around a central atom.
What is the practicality of electron-pair geometry?
- Predictive of molecular shapes and properties
- Perspectives towards bond angles and reactivity
- Explains physical properties, such as polarity and boiling point
- Influences biological aspects, such as the activities of enzymes
Electron geometry allows one to understand the behavior of molecules, otherwise it would be approximations.
Common types of electron-pair geometries
| Number of Electron Pairs | Electron-Pair Geometry | Typical Bond Angles |
| 2 | Linear | 180° |
| 3 | Trigonal Planar | 120° |
| 4 | Tetrahedral | 109.5° |
| 5 | Trigonal Bipyramidal | 90° and 120° |
| 6 | Octahedral | 90° |
Table above contains information used to determine the arrangement around the atom.
What is the geometry of 5 electron pairs?
In 5 regions where electron density (either bonding or nonbonding) surrounds the central atom, the electron-pair geometry assumes a trigonal bipyramidal.
Characteristics:
- Shape: Two pyramids sharing a common base
- Bond angles: 90° between the equatorial positions and 120° between the equatorial atoms and positions Axial equatorial
- Electron regions: Could be a constellation of bonds or lone pairs.
Example:
Phosphorus pentachloride (PCl₅)
- PCl₅ contains 5 bonding pairs and no lone pairs. It possesses a perfect trigonal bipyramidal.
- If lone pairs are present, they will make the shape “see-saw” or “T-shaped” but will retain the electron-pair geometry as trigonal bipyramidal.
What is the 6 electron-pair geometry?
When there are 6 regions of electrons around the central atom, the electron pair geometry is termed octahedral.
Characteristics:
- Shape: Eight triangular faces form an octahedron.
- Bond angles: All the electron areas are 90° apart.
- Electron distribution: Homogeneous and symmetrical.
Example:
Sulfur hexafluoride (SF₆)
In SF₆:
- 6 bonding pairs.
- 0 lone pairs.
- Geometry: Perfect octahedral.
Even with lone pairs (as seen in BrF₅ or XeF₄), the electron geometry remains octahedral, although the molecular shape might vary slightly.
What is the geometry of the electron clouds?
The geometry of the electron clouds deals with the configuration of the density ‘clouds’ of electrons (bonds or lone pairs) revolving around a central atom.
Each ‘cloud’ is a region which contains an electron pair (or many electrons) and the shape depends on the number of these clouds.
- 2 clouds → Linear
- 3 clouds → Trigonal planar
- 4 clouds → Tetrahedral
- 5 clouds → Trigonal bipyramidal
- 6 clouds → Octahedral

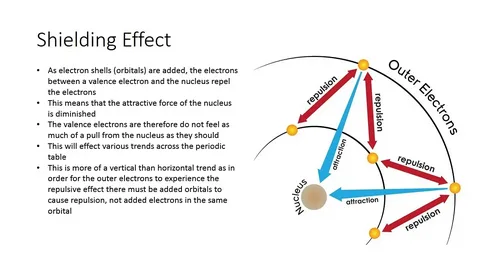

Electron clouds repel each other, attempting to achieve the greatest distance apart from one another. They also help to define the geometry described.
What is an example of electron geometry?
An example of electron geometry which is easy and somewhat common is methane (CH₄).
Central atom: Carbon (C)
- Valence electrons of carbon: 4
- Bonds formed: 4 single bonds with hydrogen atoms
- Electron regions: 4 bonding pairs
- Electron-pair geometry for methane: Tetrahedral
- Bond angles: ~109.5°
Symmetrical, nonpolar molecule
Even more, if we consider ammonia (NH₃):
- Central atom: Nitrogen (N)
- 3 bonding pairs and 1 lone pair
- Electron-pair geometry: Tetrahedral
- Molecular shape: Trigonal pyramidal
The presence of lone pairs changes the molecular shape but not the electron-pair geometry.
How does electron-pair geometry differ from molecular geometry?
It’s important to know the difference:
| Aspect | Electron-Pair Geometry | Molecular Geometry |
| Includes | Both bonding and lone pairs | Only bonding pairs |
| Based on | Total electron regions | Shape formed by atoms only |
| Example (NH₃) | Tetrahedral (4 electron regions) | Trigonal pyramidal (only bonded atoms) |
In short:
Molecular geometry = shape visible with nuclei/atoms
Real world examples based on electron-pair geometry
- CO₂ (carbon dioxide) → Linear electron geometry (2 regions)
- BF₃ (boron trifluoride) → Trigonal planar (3 regions)
- CH₄ (methane) → Tetrahedral (4 regions)
- PCl₅ (phosphorus pentachloride) → Trigonal bipyramidal (5 regions)
- SF₆ (sulfur hexafluoride) → Octahedral (6 regions)
These examples appear everywhere—from carbon dioxide in the air we breathe to sulfur hexafluoride used in electric insulation.
Fun facts about electron-pair geometry.
- The tetrahedral angle (109.5°) is needed for proteomic and DNA organic molecules.
- Lone pairs take up more space than bonding pairs leading to some change to bond angles.
- Geometry of electron-pairs aids to comprehend why water has a bent shape, this is what gives water its distinct properties.
- Visualising geometry of electron pairs.
Placing an electron cloud akin to balloons will show an arrangement with a nucleus. They will arrange themselves as far as possible from each other. The more balloons (electron regions) there are, the more sophisticated the arrangement is.
This “balloon model” explains why shapes such as tetrahedral, trigonal bipyramidal, or octahedral occur.
Why electron pair geometry matters
Dealing with electron pairs unravels why molecules take certain shapes; how they function becomes clearer. From simple gasses like CO₂ to intricately designed molecules in your body, this principle is fundamental to chemical science.
In summary:
What is electron-pair geometry?
It is the arrangement of all the electron regions of a given atom around a central atom.
What is the geometry of 5 electron pairs?
Trigonal bipyramidal.
What is 6 electron-pair geometry?
Octahedral.
What is the geometry of the electron clouds?
Based on the areas of repulsion between zones of an electron density.
Electrons in methane (CH₄) assumes a tetrahedral shape.
When you master this, you will appreciate the world in a molecular perspective- from the meals that you consume to the surroundings you live in.
